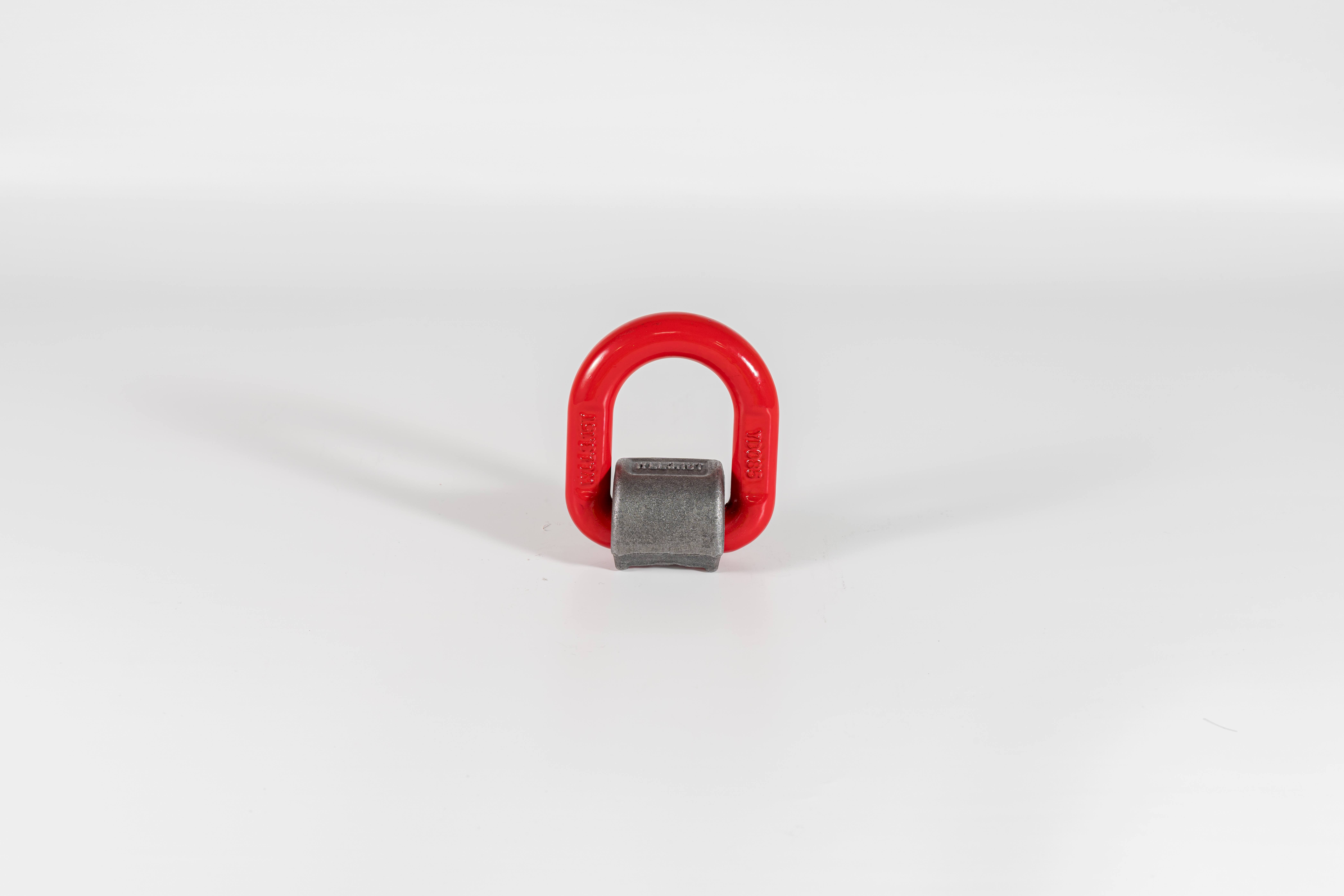

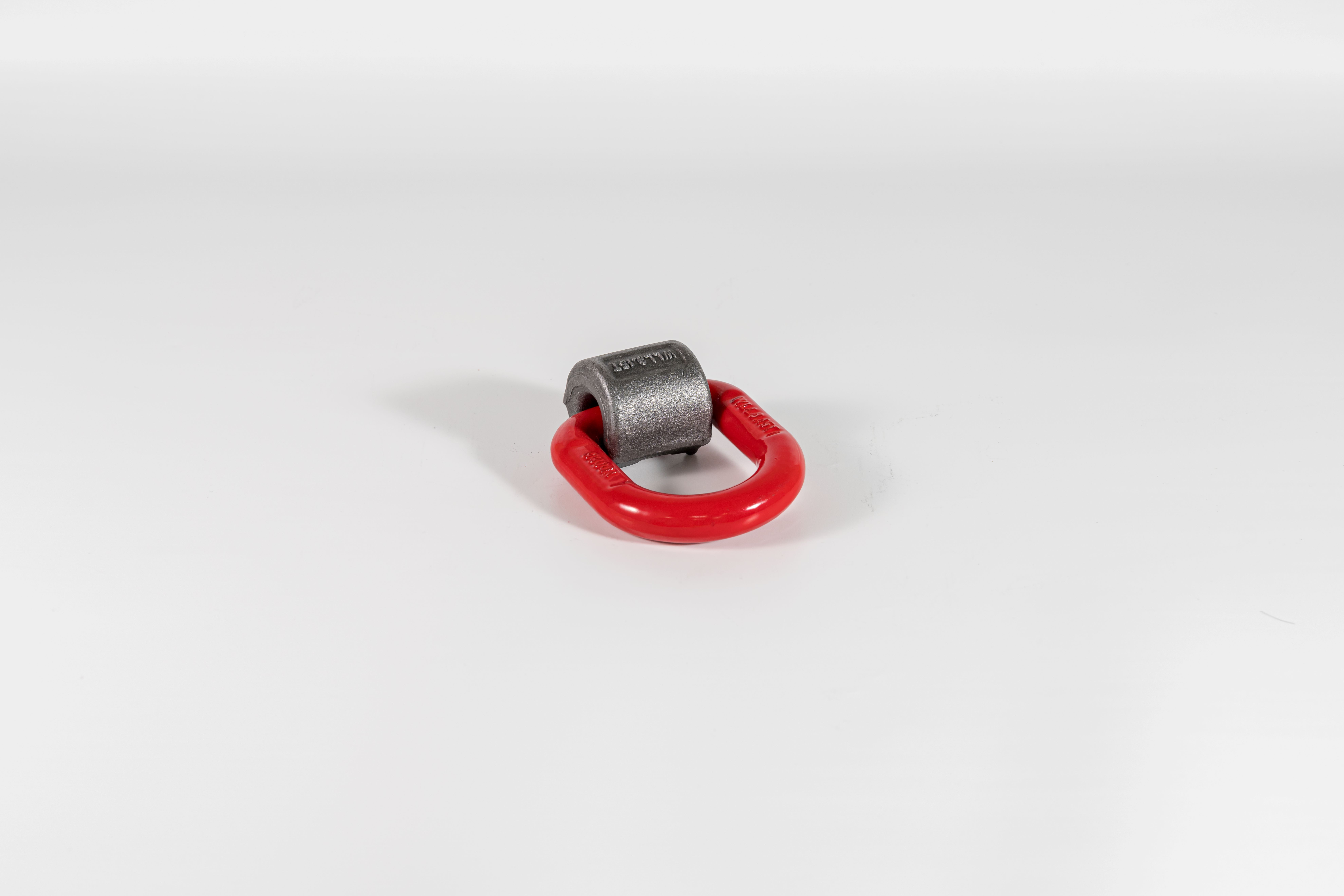

The weld on lifting point, with a load capacity of 1.12-20t and 180° pivoting capability, is designed to deliver secure and versatile lifting solutions. These lifting points can be welded directly onto the load surface, either as a reliable lifting point or as a fixed anchor point for spreader beam attachment. They create a permanent and stable lifting point, ensuring exceptional security and reliability for heavy-duty applications.
Inspection and Standards
Successfully passed 1.5x tensile fatigue testing over 20,000 cycles and 2.5x rated load testing for reliability
Verified through magnetic particle inspection to ensure the product is free of cracks
Manufactured in compliance to EN1677-1 standards; certified test reports available upon request
Key Features
180° pivot range for versatile and precise lifting applications
Work load limit (WLL) of 1.12-20t, designed to withstand demanding heavy-duty operations
Features a 4:1 safety factor and undergoes 100% non-destructive testing for added reliability
High-strength chromium-molybdenum alloy steel ensures exceptional durability and load capacity
Surface coated with epoxy resin electrostatic powder for enhanced corrosion resistance and long-lasting performance
Manufactured to EN1677-1 standards, ensuring compliance with industry quality and safety requirements
