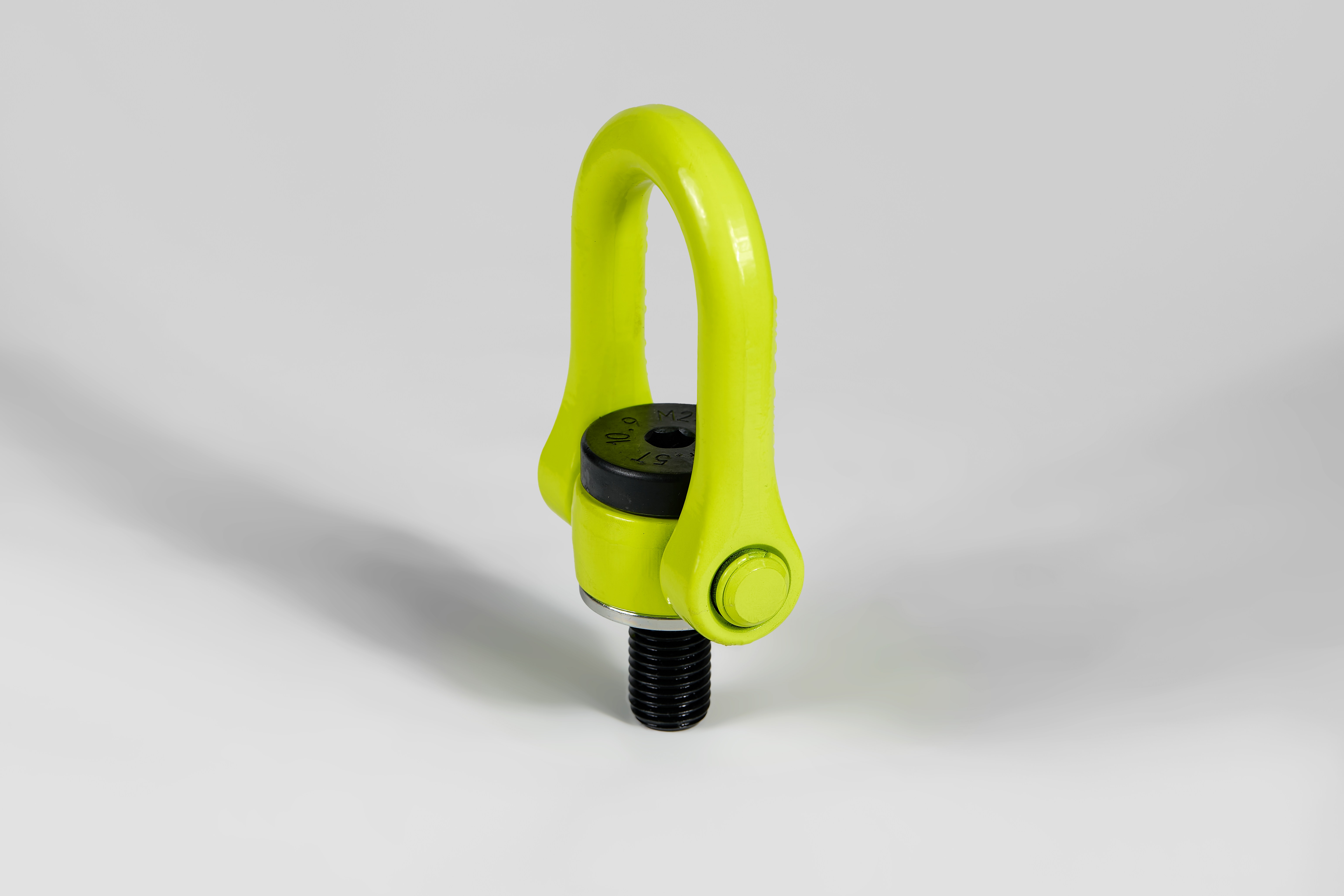

The super swivel ring, designed for heavy-duty lifting operations, offers a load-bearing capacity of 0.5-50t. Featuring 360° rotation and 180° pivot, it provides safe and precise load handling, reducing constraints on lifting angles. Its forged alloy steel construction ensures superior strength and durability, making it an ideal choice for challenging environments like construction and oil & gas applications.
Inspection and Standards
Passed 6g plug gauge inspection for compatibility with precision-threaded holes
Endured 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing for performance verification
Verified through magnetic particle inspection to ensure crack-free integrity
Complies with EN1677-1 production standards, with certified test reports available upon request
Key Features
360° rotation and 180° pivot for versatile lifting operations
Hexagonal internal bolt design ensures quick and easy installation
One-piece forged construction with no welds, ensuring high safety and durability
Available in M8–M100 and customizable thread sizes, including lengthened, shortened, coarse, fine, metric, and UNC threads
Working load limit (WLL) of 0.5-50T.
4:1 safety factor with 100% non-destructive testing for reliable performance
Each load-bearing component includes a production batch number for traceability
Made from high-strength chromium-molybdenum alloy steel, quenched and tempered for enhanced strength and toughness
Epoxy resin electrostatic powder coating for the ring body and black oxide treatment for the bolt, providing excellent corrosion resistance
