Key Eye Bolt 094-Mainlywell Lifting Solutions

Key Eye Bolt 094 Origin：China

-Grade 80 Swivel Hoist Ring,
-Available in sizes M8 to M48 (UNC available).
-WLL 0.3 - 12.0 T at 90 degree
-Safety Factor 4:1.
-Designed, tested and certified in compliance with technical directives EN1677
-Fully Certified

Quote online

Previous Next

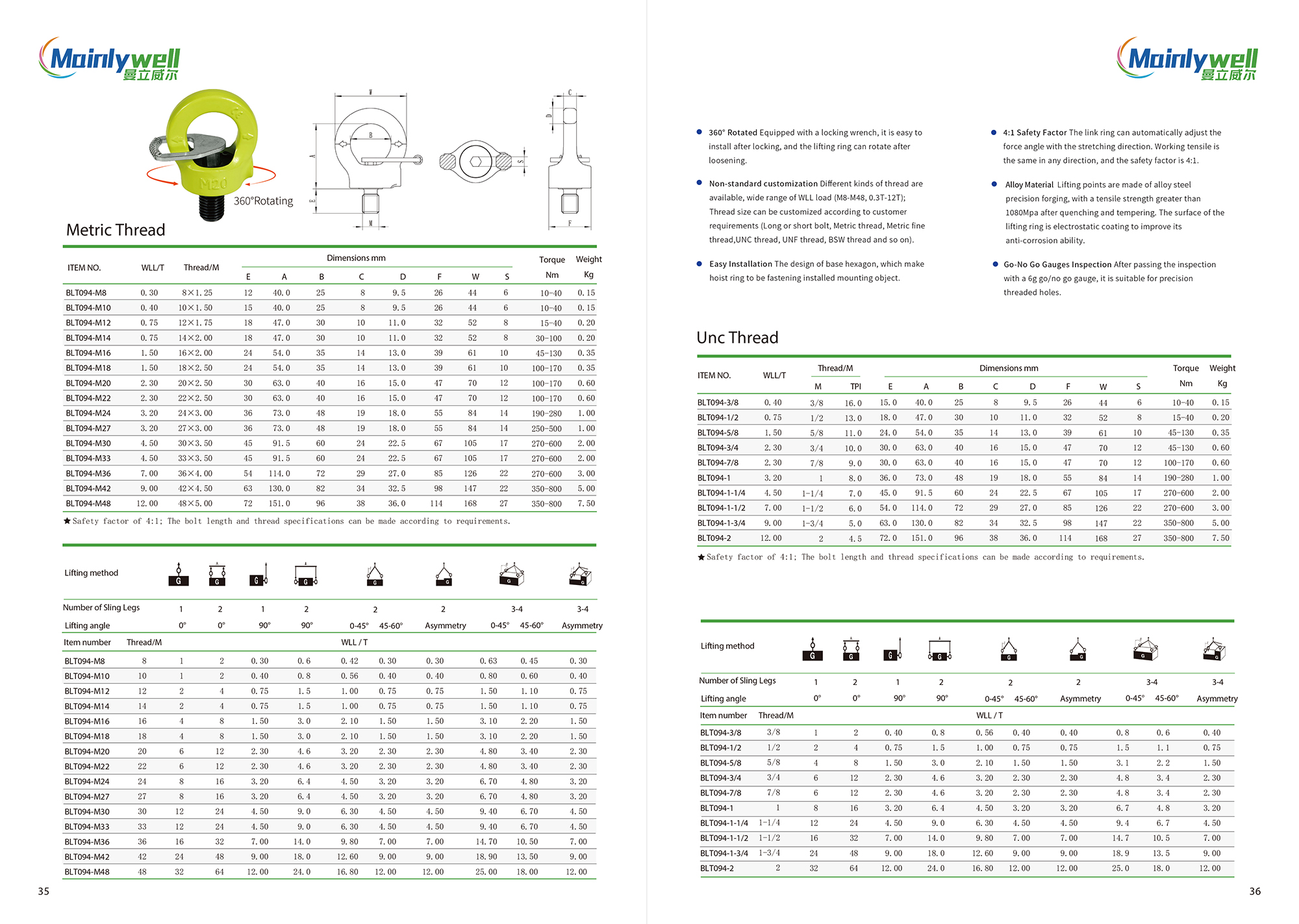

Details Specification

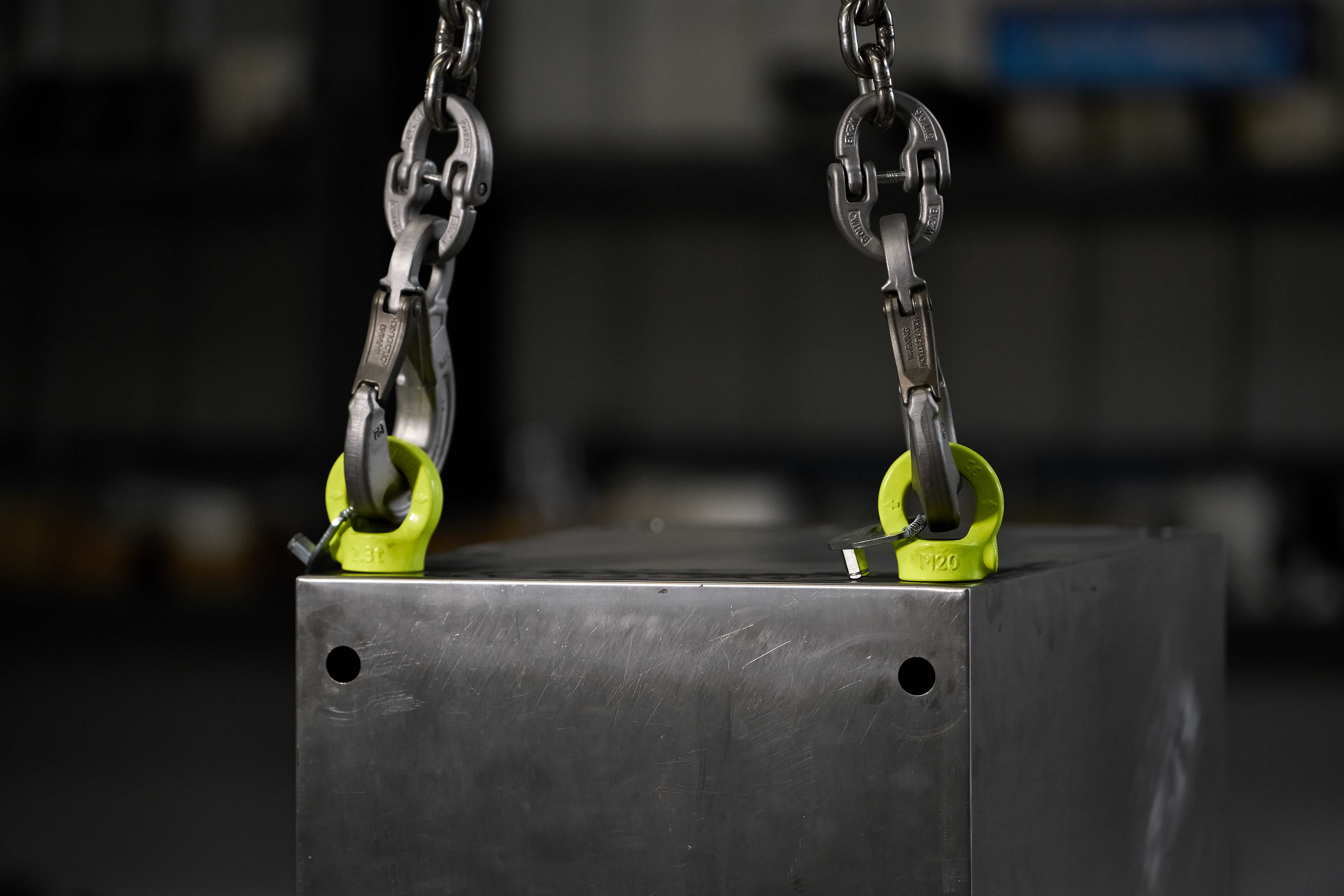

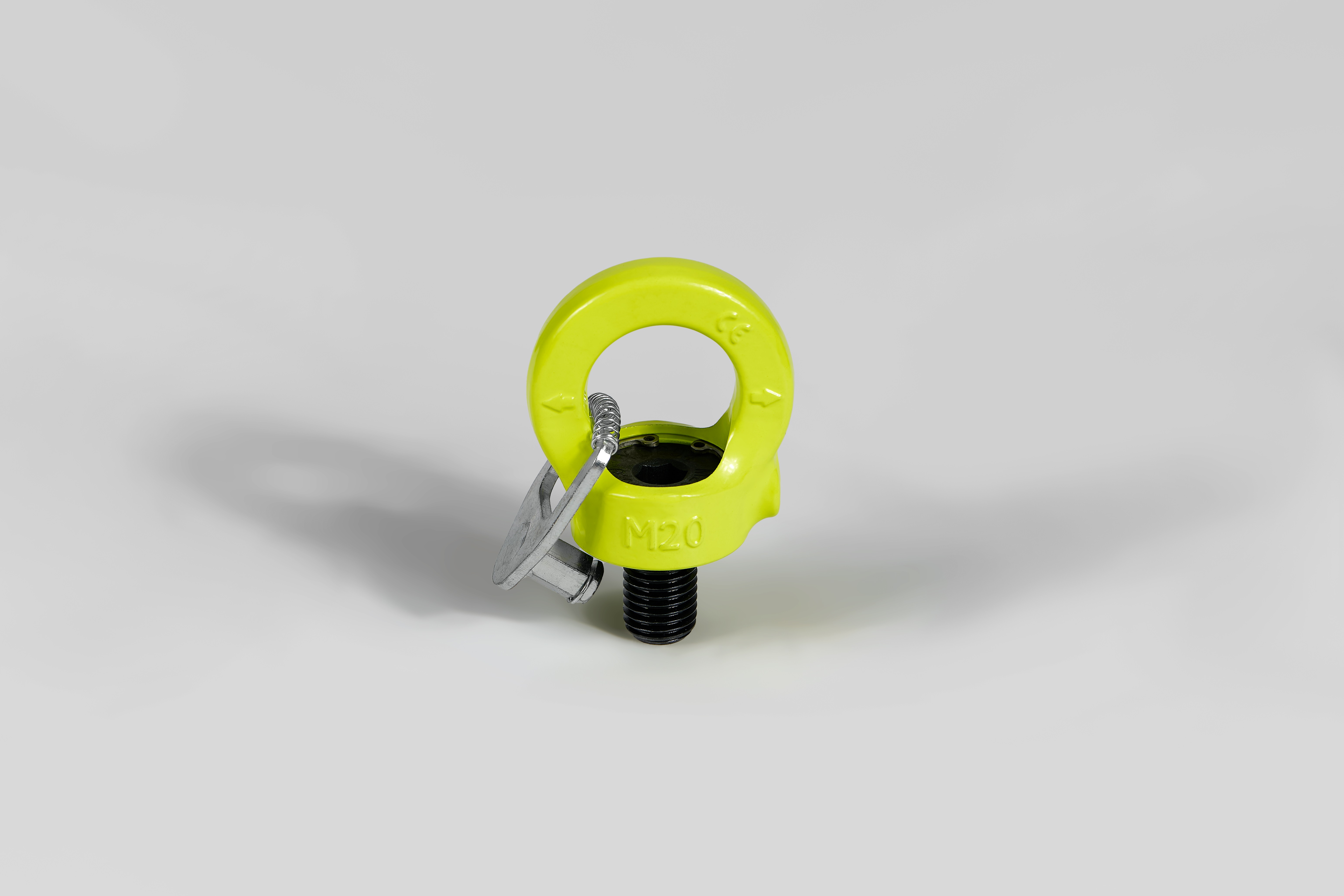

The key eye point offers a working load limit of 0.3-12t and full 360-degree rotation. Its lightweight, compact design, combined with a self-locking plate that ensures quick, tool-free installation, makes it an ideal solution for efficient and secure lifting operations in limited spaces.

Inspection and Standards

Passed 6g plug gauge inspection for compatibility with precision-threaded holes
Withstood 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing for durability
Verified through magnetic particle inspection to confirm crack-free integrity
Manufactured according to EN1677-1 standards, with certified test reports available upon request

Key Features

Compact and lightweight design for installation in confined lifting environments
Enables full 360° rotation for precise load positioning

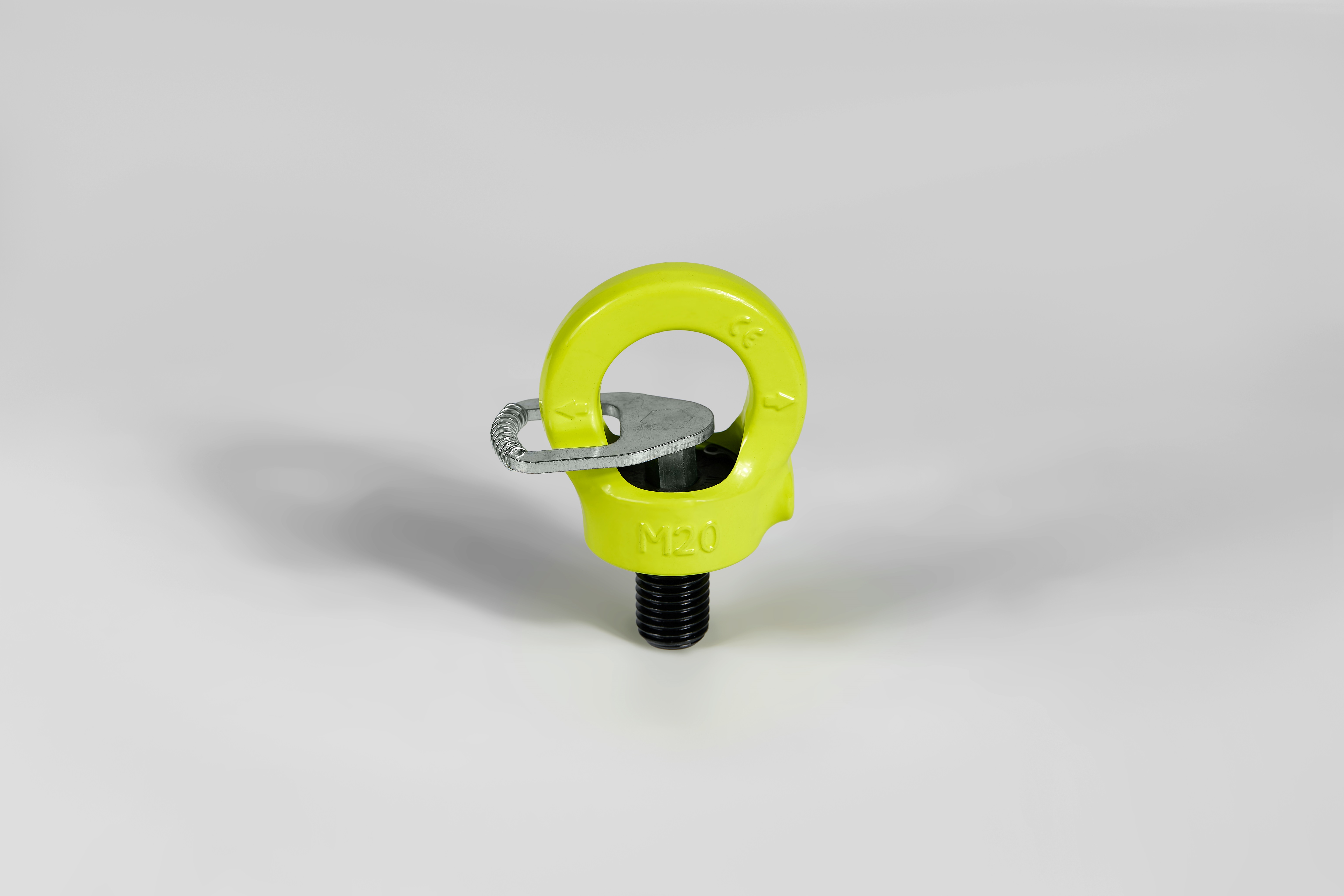

Equipped with a self-locking plate for quick, tool-free installation.
Available in M8-M48 and custom thread sizes (extended, shortened, coarse, fine, metric, or imperial)
Work load limited (WLL) of 0.3-12t, ensuring safe performance even at challenging angles (e.g., 90°)
4:1 safety factor with 100% non-destructive testing for enhanced reliability
Load-bearing components feature batch numbers for easy traceability
Forged from high-strength chromium-molybdenum alloy steel, heat-treated (quenched and tempered) for superior strength and toughness
Epoxy resin electrostatic powder coating (ring) and black oxide treatment (bolt) for enhanced corrosion resistance
