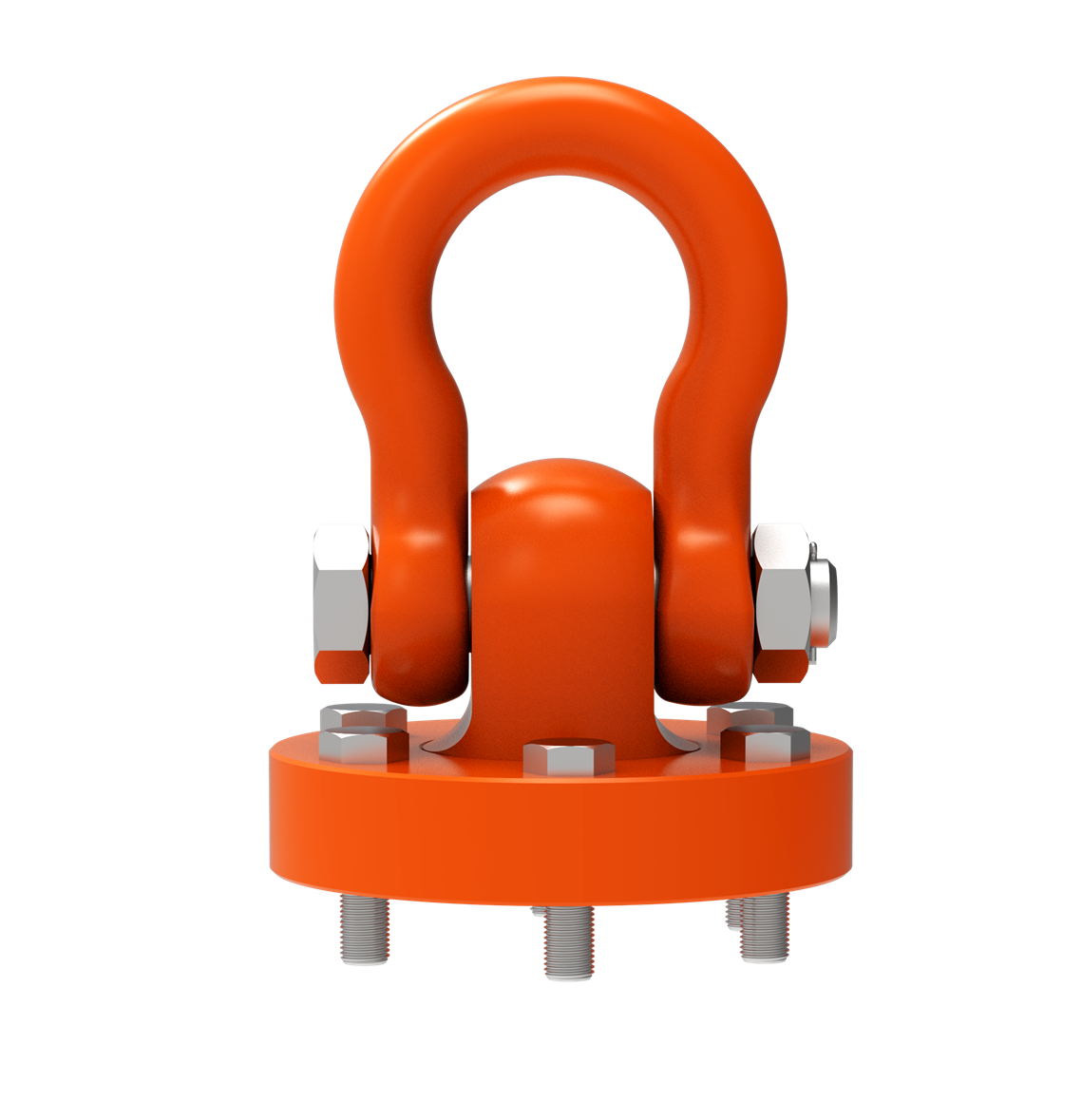

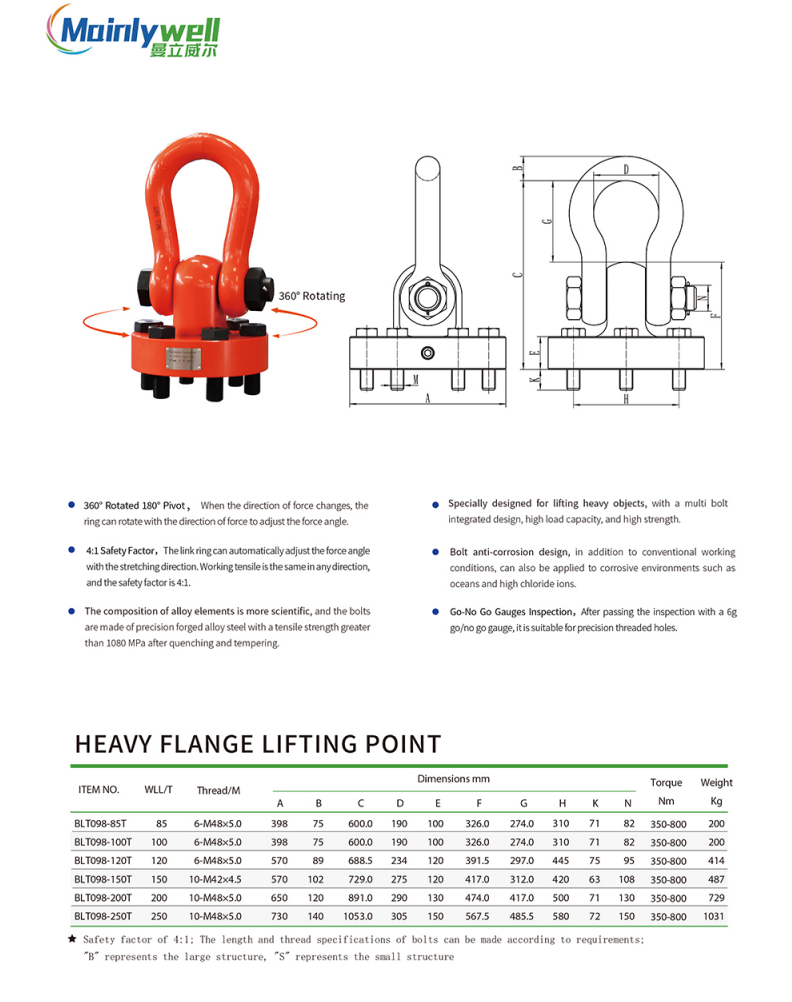

Engineered for lifting and transporting heavy-duty equipment and workpieces, the heavy duty flange lifting point supports an impressive working load limit of 85–250t. With 360° rotation and 180° pivot capabilities, it ensures secure and precise handling in demanding industrial environments.
Inspection and Standards
Passed 6g plug gauge inspection, suitable for precision threaded holes
Underwent 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing for strength and durability
100% magnetic particle inspection ensures the product is crack-free
Compliant with EN1677-1 manufacturing standards; certified test reports available upon request
Key Features
Designed for lifting and transporting heavy-duty equipment and workpieces
Supports 360° rotation and 180° pivot for secure and versatile handling
Features an external hexagon bolt design for easy and efficient installation
Available in M48 thread size with a working load limit of 85–250t, tested at the most disadvantageous angle (90°)
Built with high-strength chromium-molybdenum alloy steel, quenched and tempered for enhanced durability and toughness
Coated with epoxy resin electrostatic powder (ring) and black oxide treatment (bolt) for corrosion resistance and extended service life
Each load-bearing component is stamped with a production batch number for easy traceability
Designed with a 4:1 safety factor and tested with 100% non-destructive inspection
