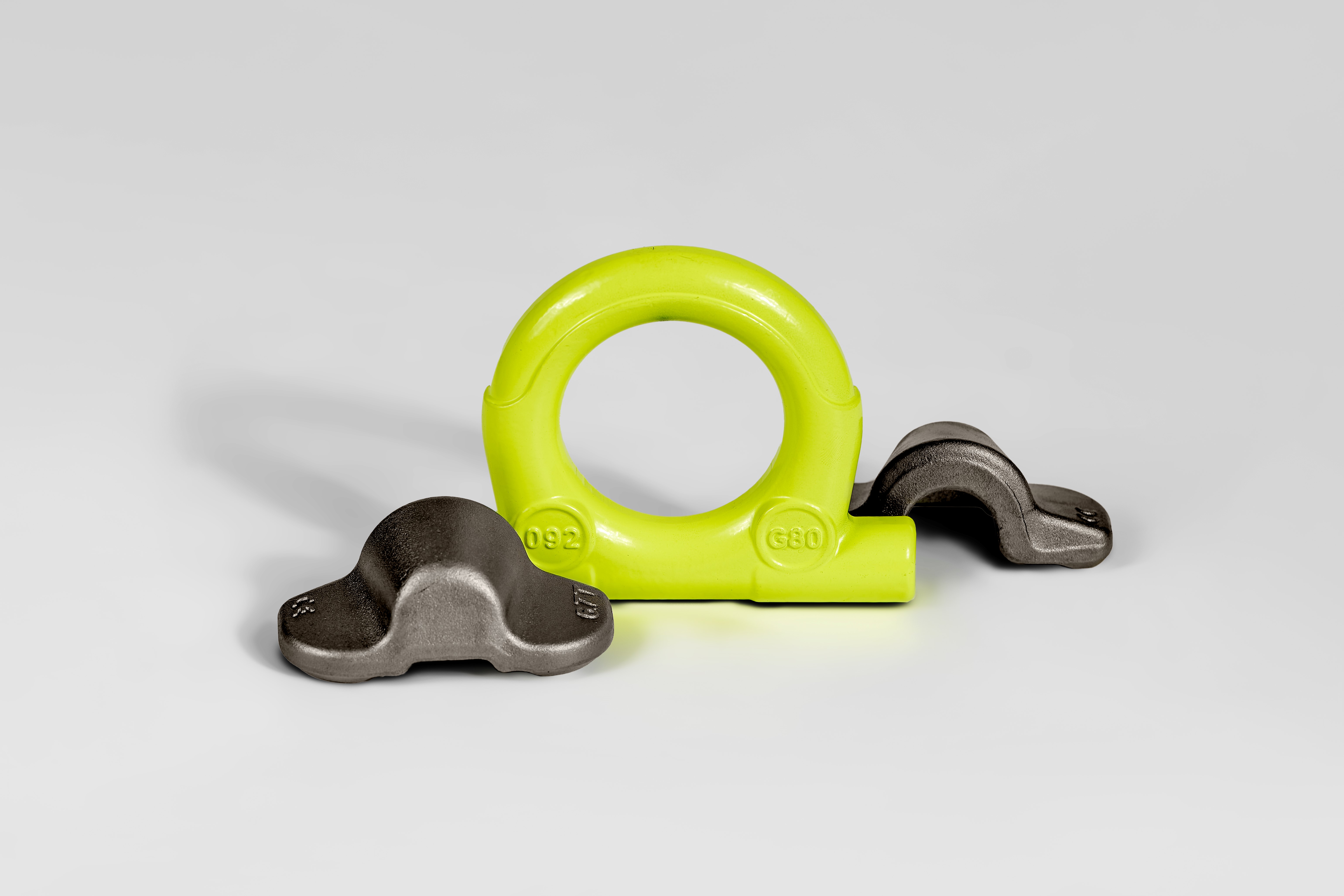

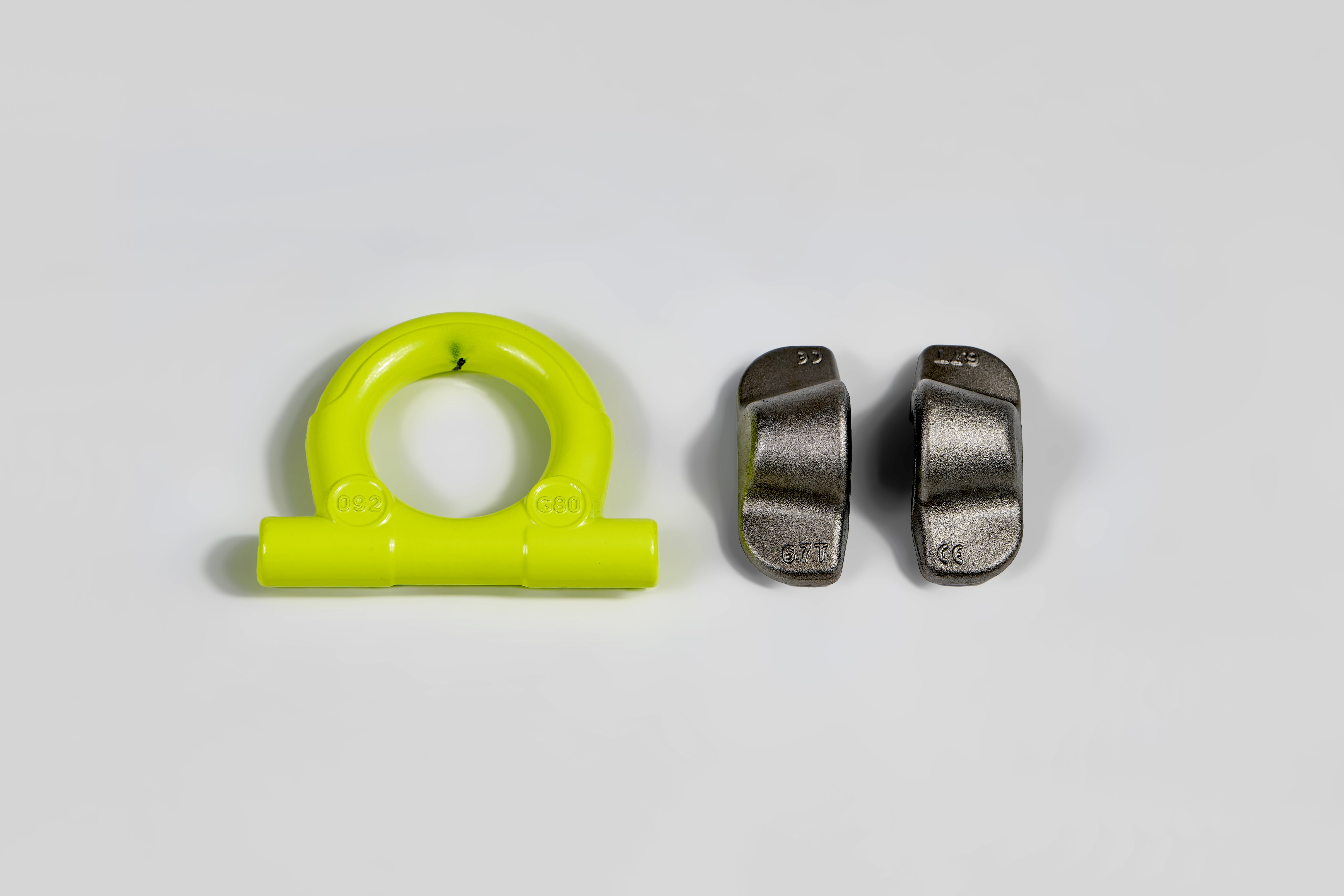

The weld-on load ring is engineered for heavy-duty lifting and anchoring applications, offering a working load limit of 4-31.5t and 180° pivot functionality. Designed for permanent attachment via welding, the lashing load ring creates a stable and secure lifting point ideal for industrial, and oil & gas operations.
Inspection and Standards
Tested with 1.5x load fatigue cycles (20,000 cycles) and 2.5x rated load tests for exceptional durability
Inspected using magnetic particle testing to ensure no surface cracks or defects
Produced in accordance with EN1677-1 standards, with certified test reports available upon request
Key Features
Offers 180° pivot capability for flexibility in lifting and secure load positioning
Work load limited (WLL) of 4-31.5t ensures compatibility with various heavy-duty applications
Built with a 4:1 safety factor and subjected to 100% non-destructive testing for reliability
Forged from high-strength chromium-molybdenum alloy steel, quenched and tempered for enhanced durability
Coated with epoxy resin electrostatic powder for long-term corrosion resistance, making it suitable for harsh environments
