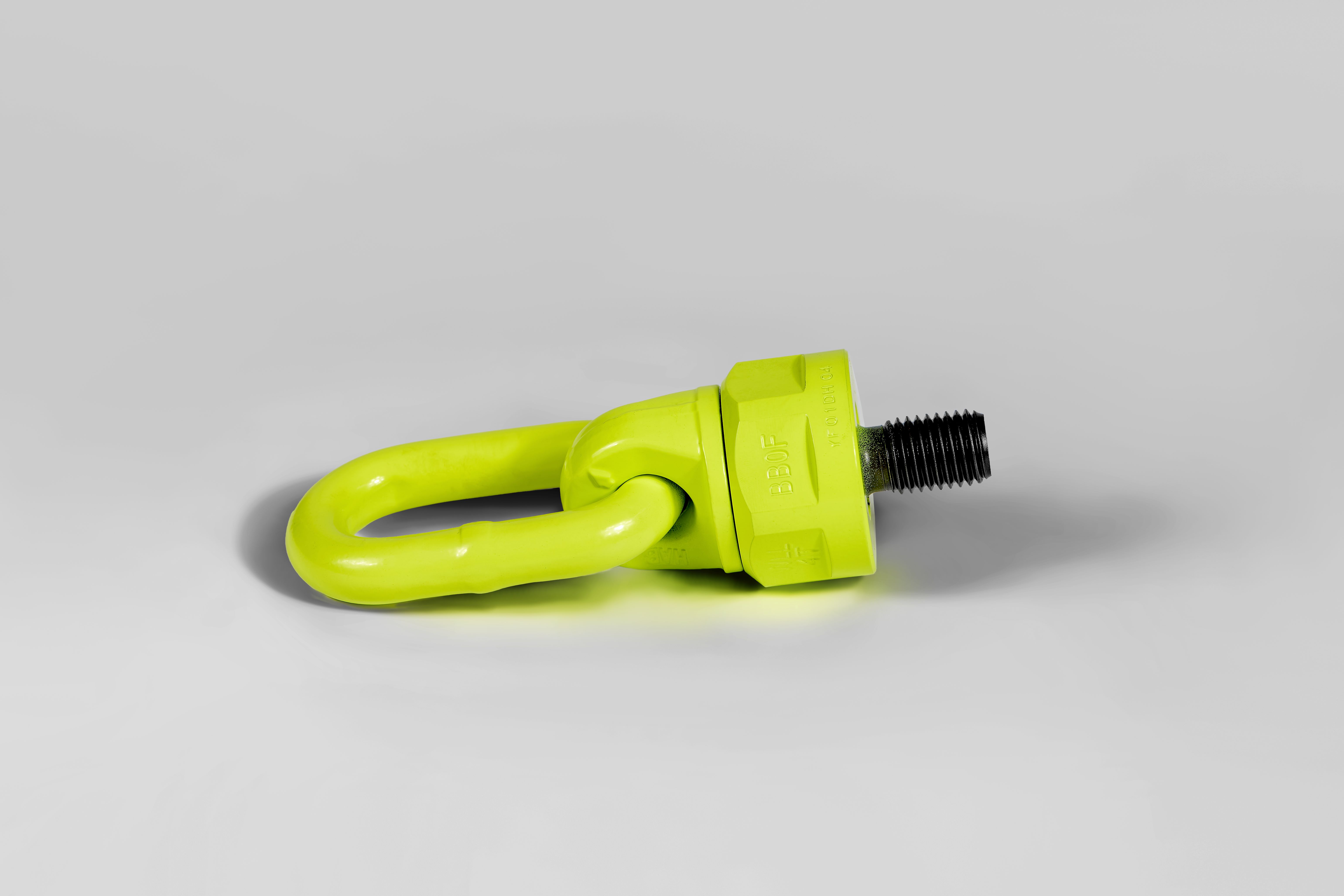

Engineered for precision and versatility, this swivel hoist ring offers a working load limit ranging from 0.4t to 50t. With full 360-degree rotation and a 230-degree pivot, it ensures smooth lifting operations, even in the most challenging angles. Its ball-bearing mechanism allows seamless rotation under load for uniform stress distribution and enhanced safety during lifting operation.
Inspection and Standards
Passed 6g plug gauge inspection, ensuring compatibility with precision-threaded holes
Endured 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing for reliability
Verified through magnetic particle inspection to confirm crack-free integrity
Complies with EN1677-1 standards, with certified test reports available upon request
Key Features
Available in a wide range of sizes, including customizable nut-type models (0832 Nut Type), to meet diverse application needs
Hexagonal base design ensures effortless and secure installation on the load

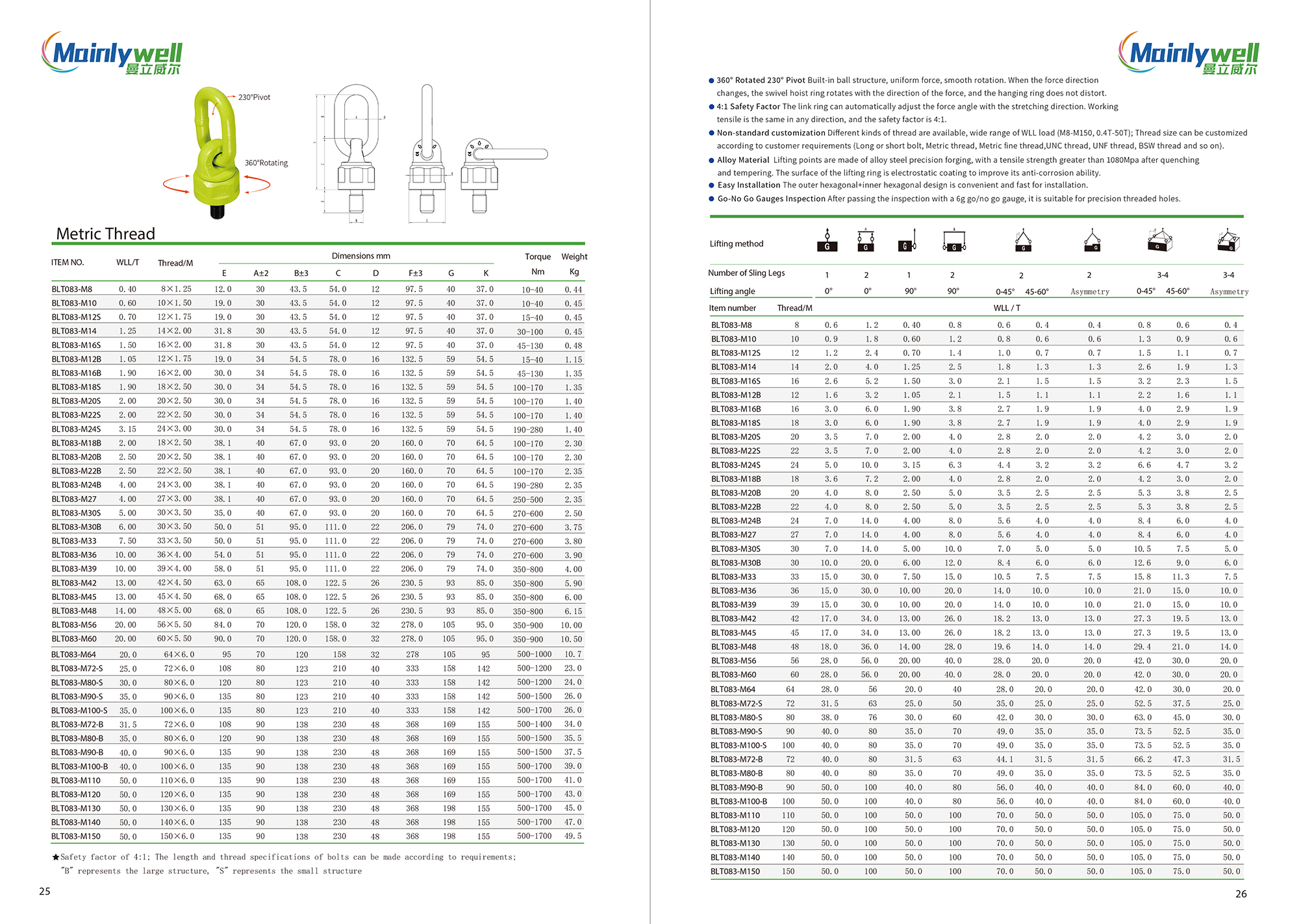

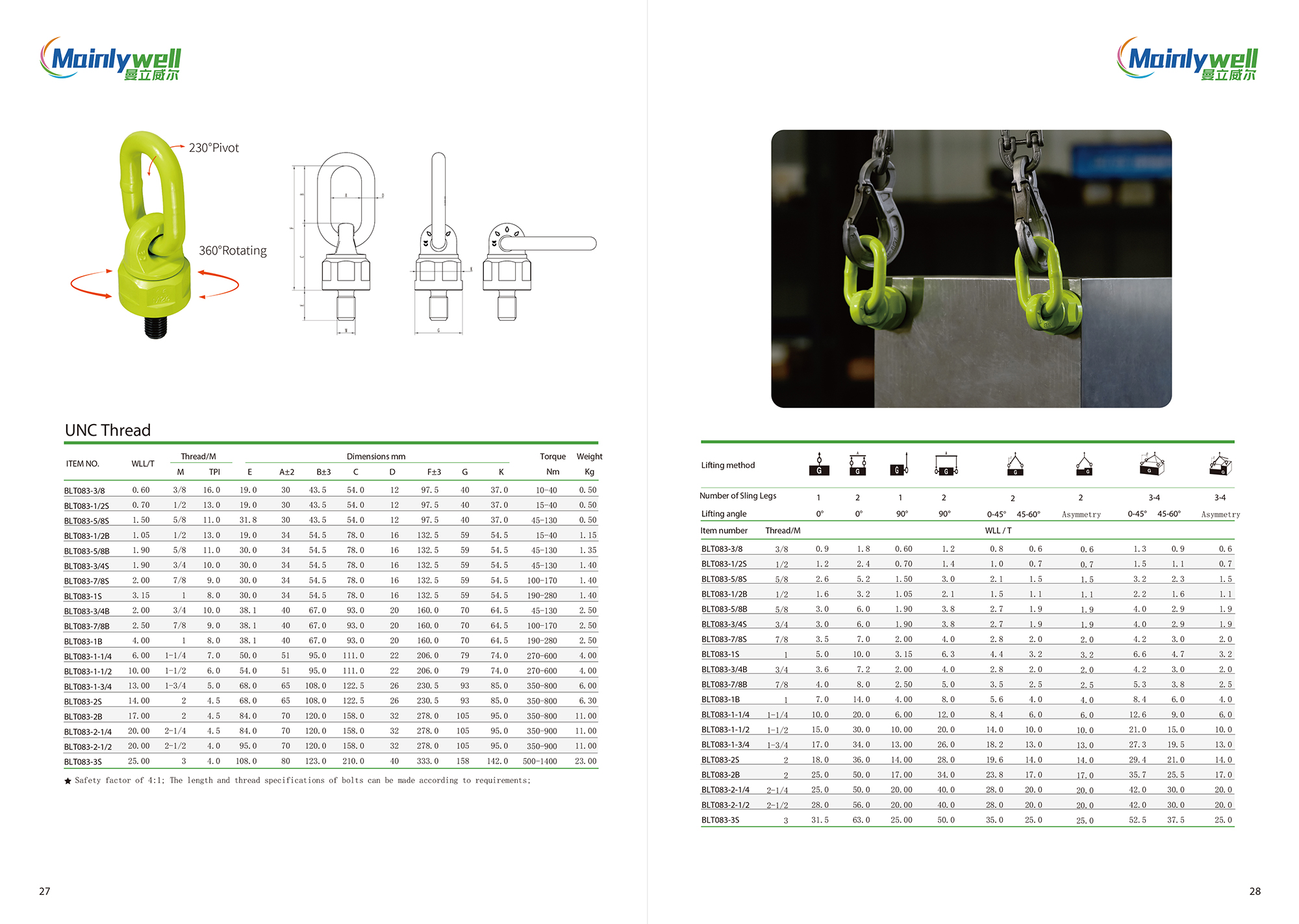

Offered in M8-M150 and special thread sizes (lengthened, shortened, coarse, fine, metric, or imperial)
Forged from high-strength chromium-molybdenum alloy steel, quenched and tempered for superior strength and durability
Epoxy resin electrostatic powder coating for the ring body; black oxide, electrophoresis, or Dacromet treatments for the bolts
Features a 4:1 safety factor with 100% non-destructive testing. Every load-bearing component is stamped with a production batch number for traceability
