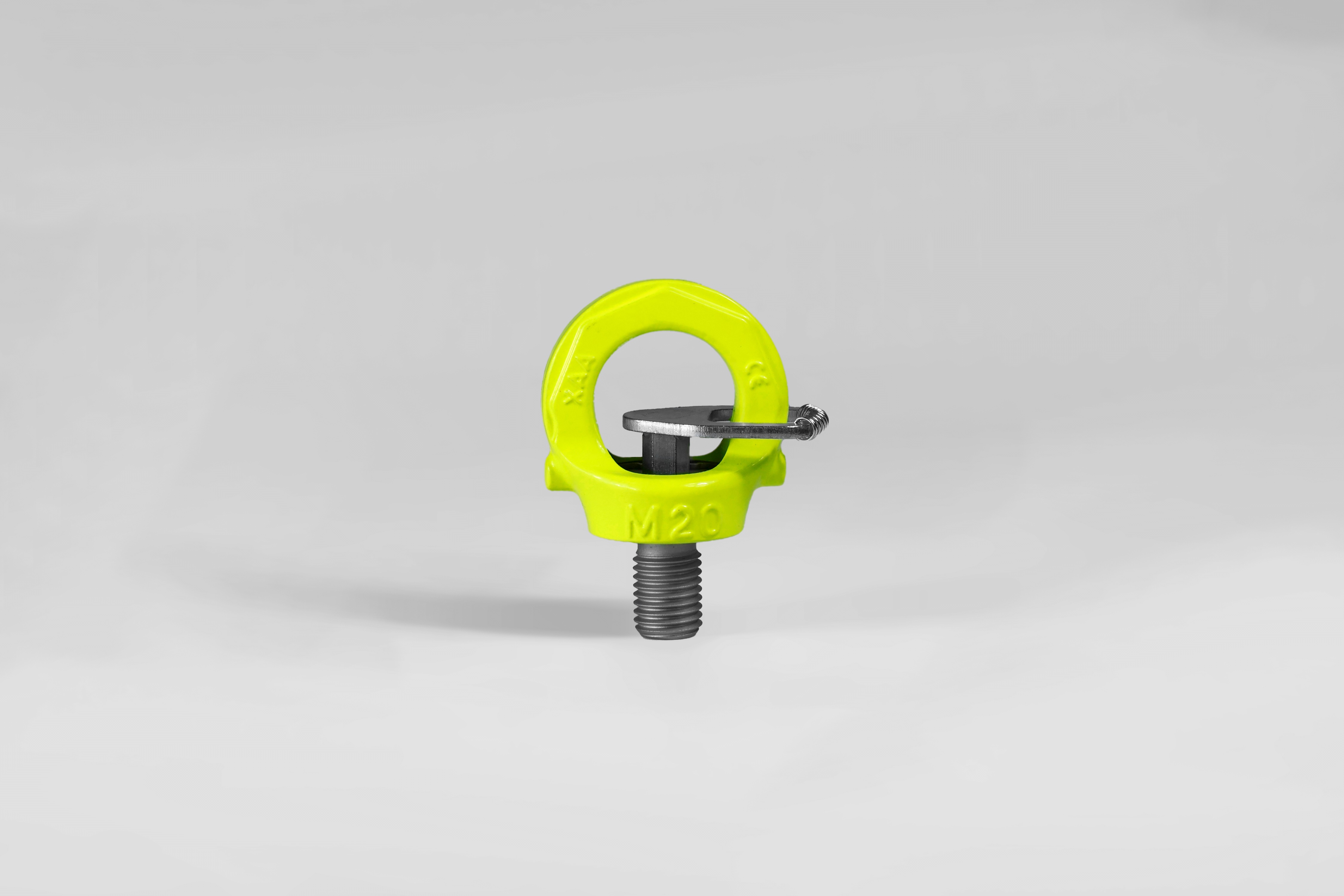

Designed to excel in confined spaces and demanding lifting scenarios, this key eye point with self-locking plate offers a working load limit ranging from 0.3t to 18t. The lifting eye rotates through 360° adjustable in the direction of the load and combines advanced strength, compact design, and self-locking features to enhance efficiency and safety. It is ideal for precision lifting in wind power installations, industrial applications, and marine operations.

Inspection and Standards

• Passed 6g plug gauge inspection for precision-threaded holes

• Withstood 1.5x load fatigue testing for 20,000 cycles and 2.5x rated load testing

• Magnetic particle inspection ensures crack-free integrity

• Manufactured to EN1677-1 standards with certified test reports available upon request

Key Features

• Enhanced material composition for improved durability and resilience

• Optimized tensile strength and fatigue performance, outperforming BLT94 key eye point under 90° load conditions

• Precision one-piece forging with advanced heat treatment for increased hardenability

• Eco-friendly coating with over 400 hours of salt spray resistance, suitable for marine and corrosive environments

• Innovative patented symmetrical design for improved aesthetics and balance, offering full 360° rotation

• Equipped with a self-locking plate for quick and tool-free installation

• Compact build designed for tight and challenging lifting environments

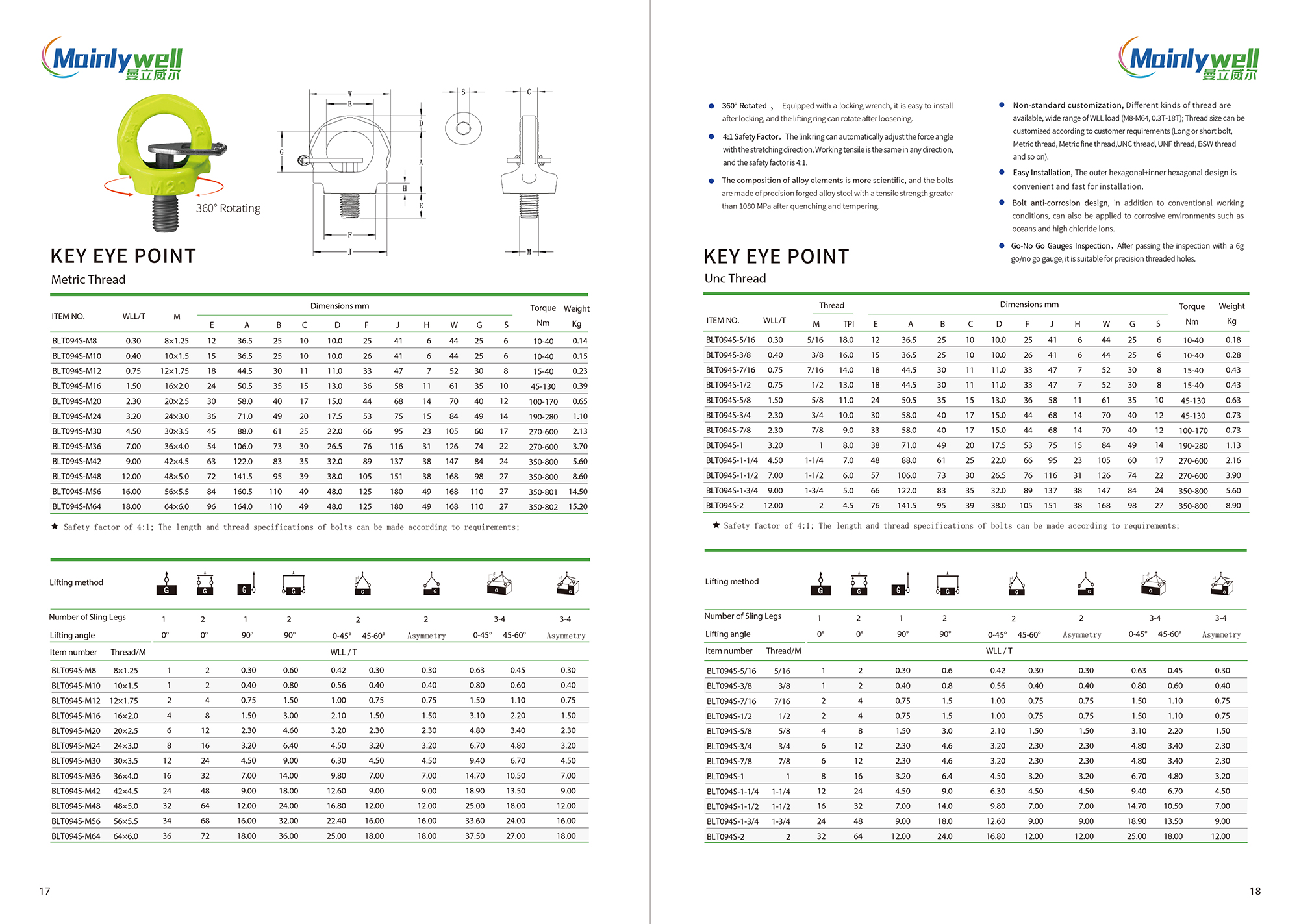

• Available in M8-M64 and customizable thread options, including extended, shortened, coarse, fine, metric, and UNC threads

• Rated work load limit (WLL) of 0.3-18T

• Safety factor of 4:1, with 100% non-destructive testing

• Each load-bearing component is stamped with a production batch number for traceability

• Forged from high-strength chromium-molybdenum alloy steel, quenched and tempered for enhanced strength and toughness

• Features an epoxy resin electrostatic powder coating for the ring body and Dacromet rust-proof treatment for the bolt
